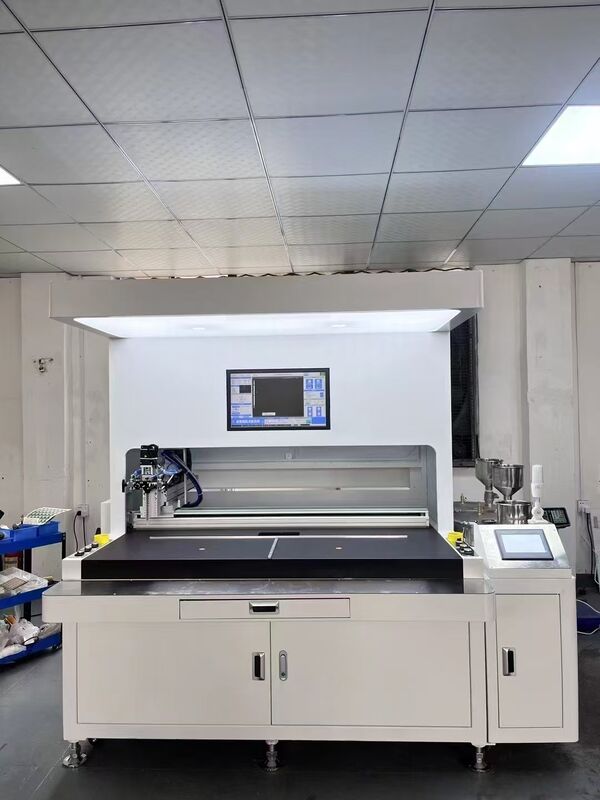

High Speed Resin Sticker Doming Machine

Technical item

Technical parameters

Glue mixing ratio

3:1

Machine motion stroke

Working stroke: 400*600*100mm (dual working areas A/B)

Operating speed

500mm/s(displacement)

Operating accuracy

±0.2mm(displacement)

Dispensing speed

5200DPH(dot)

Running trajectory

Point, straight line, square, circle, S

Dispensing speed

Adjustable from 5 to 10g/S (with certain differences depending on the characteristics of the glue)

Glue control accuracy

Glue content ±2%, proportion :±2%

Input air pressure range

0.4-0.8 MPa

The head is sealed under pressure.

MAX acuities were 2.6 Mpa

The viscosity of water in the glue

<10000CPS

Operation mode

Automatic, manual

Control of the proportion of glue

High-precision metering pump

Pump A, Pump B

High-precision gear pump

Programming method

Teaching programming

Electronic control system

Visual industrial control + control panel (program setting, modification, storage, etc.)

Glue cut-off system

Independent instantaneous automatic back-suction system for A and B adhesives

Mixing and stirring system

Dynamic stirring device

Glue stirring system

High-stability step-by-step continuous stirring device

Glue heating system

A Heating System

Capacity of A rubber compound bucket

20L

The capacity of the B rubber compound bucket

20L

Capacity of the cleaning bucket

5L

Overall dimensions

2080mm*1150mm*2000mm

Rated power supply power

220V 50Hz 2500W

Category

"Configuration"

Quantity

Unit

Brand and remarks description

Rack

Steel frame/sheet metal welding

1

Taiwan

National standard material

Visual system

High-definition camera

2

Taiwan

1200w

High-definition lens

2

a

Visual light source

1

Set of

LED light strip

CCD vision software system

1

Set of

Brand and remarks description

Computer mainframe

1

Taiwan

Customized industrial control computer

Computer liquid crystal display

1

a

Cleaning system

Cleaning the material bucket (304 stainless steel)

1

a

Self-developed and customized

High-pressure cleaning system

1

Set of

Independent research and development

Cleaning solution limited level sensor

1

Set of

Independent research and development

Cleaning liquid limit liquid level alarm system

1

Set of

Independent research and development

Gluing system

A rubber compound bucket (304 stainless steel)

1

a

Self-developed and customized

A rubber compound bucket heating component

1

Set of

Self-developed and customized

High-precision gear pump with A rubber

1

Set of

High-stability drive motor with A glue

1

Set of

Self-developed and customized

A glue limited liquid level sensing system

1

Set of

Self-developed and customized

A rubber explosion-proof Teflon pipe

1

article

Self-developed and customized

A rubber filter screen

1

Set of

Self-developed and customized

B Rubber compound bucket (304 stainless steel)

1

a

Self-developed and customized

High-precision gear pump with B glue

1

Set of

High-stability drive motor with B glue

1

Set of

Self-developed and customized

B glue limited liquid level sensing system

1

Set of

Self-developed and customized

B rubber explosion-proof Teflon pipe

1

article

Self-developed and customized

B glue filter screen

1

Set of

Self-developed and customized

Instantaneous back-suction double-liquid stop valve

1

Set of

Self-developed and customized

Mixing pipe

1

Set of

Self-developed and customized

High-precision motion platform

(Three-axis

Dual work areas A/B

1

a

Marble platform

Xy-axis high load-bearing tank chain

1

Set of

Domestic customization

X-axis high-precision ball screw

1

Set of

High-precision X-axis guide rail

2

Set of

X-axis servo + drive

1

Set of

Domestic servo

Y-axis high-precision guide rail

2

Set of

Y-axis high-precision lead screw

1

Set of

Y-axis servo + drive

1

Set of

Domestic servo

Z-axis high-precision guide rail

2

Set of

Z-axis high-precision lead screw

1

Set of

Z-axis closed loop + drive

1

Set of

Domestic production"

Supporting auxiliary materials

Mixing pipe

20

the

Anti-corrosion type

O-ring seal

10

a

Anti-corrosion type

Allen wrench

1

Set of

Domestic customization

Electronic scale

1

a

Customized industrial control computer
